Retaining wall permits and engineering

The 4-foot rule

The building codes adopted in New York and New Jersey are based on the International Residential Code, which exempts retaining walls from a building permit when they are not over 4 feet high measured from the bottom of the footing to the top of the wall, and do not support a surcharge. Above that height, or with a surcharge, the wall is a structure that needs a permit and, in most towns, a design stamped by a licensed engineer.

The measurement is the part people get wrong. It is not 4 feet of exposed face. It is 4 feet from the bottom of the footing, which for a segmental block wall includes the buried first course and the compacted base under it. A wall showing 3 feet 6 inches above grade can easily be over 4 feet by the code measurement.

Towns are free to be stricter, and many in Bergen County and Rockland are. Some require a permit for any wall over 2 or 3 feet, some count terraced walls together if they are closer than a set distance, and some require a survey to show the wall is not on the setback line. Check with the building department before the layout is final, or have the contractor do it.

Surcharge changes everything

A surcharge is any extra load on the soil behind the wall: a driveway, a parked car, a pool, a house footing, a slope rising above the wall, or another wall above it. A surcharge pushes harder on the wall than flat lawn does, and it removes the permit exemption regardless of height.

The practical rule is that anything heavy within a distance equal to the wall height behind the wall is a surcharge. A 3 foot wall with a driveway 2 feet behind it is a surcharged wall, and it should be designed as one, with geogrid and a wider base, even if the town does not ask for the drawing.

Slopes count. A wall at the bottom of a hillside in Nyack or Hillburn is holding back the hill, not just the strip of soil directly behind it. Engineers design for this with longer geogrid layers and a heavier wall section. It is the reason two walls of the same height can look completely different in cross-section.

Drainage behind the wall

Water is what pushes walls over. Saturated soil weighs more than dry soil and pushes sideways with hydrostatic pressure, and in winter it freezes and expands. A wall with no drainage is under the most load in early spring, right when the ground behind it is thawing and full of snowmelt.

Every wall needs three things behind it: a column of clean drainage stone at least 12 inches wide directly behind the block, a 4 inch perforated pipe at the base of that stone that runs to daylight or a drain, and filter fabric between the stone and the native soil so fines do not wash in and clog the stone. The pipe needs an outlet. A pipe that dead-ends in the ground does nothing.

Surface water should be kept away from the top of the wall as well. Grade the ground above the wall to run parallel to it, not into it, and cap the top course so rain sheds forward instead of soaking down behind the block. Weep holes are not a substitute for a drain pipe on any wall taller than a couple of courses.

Block, natural stone, or timber

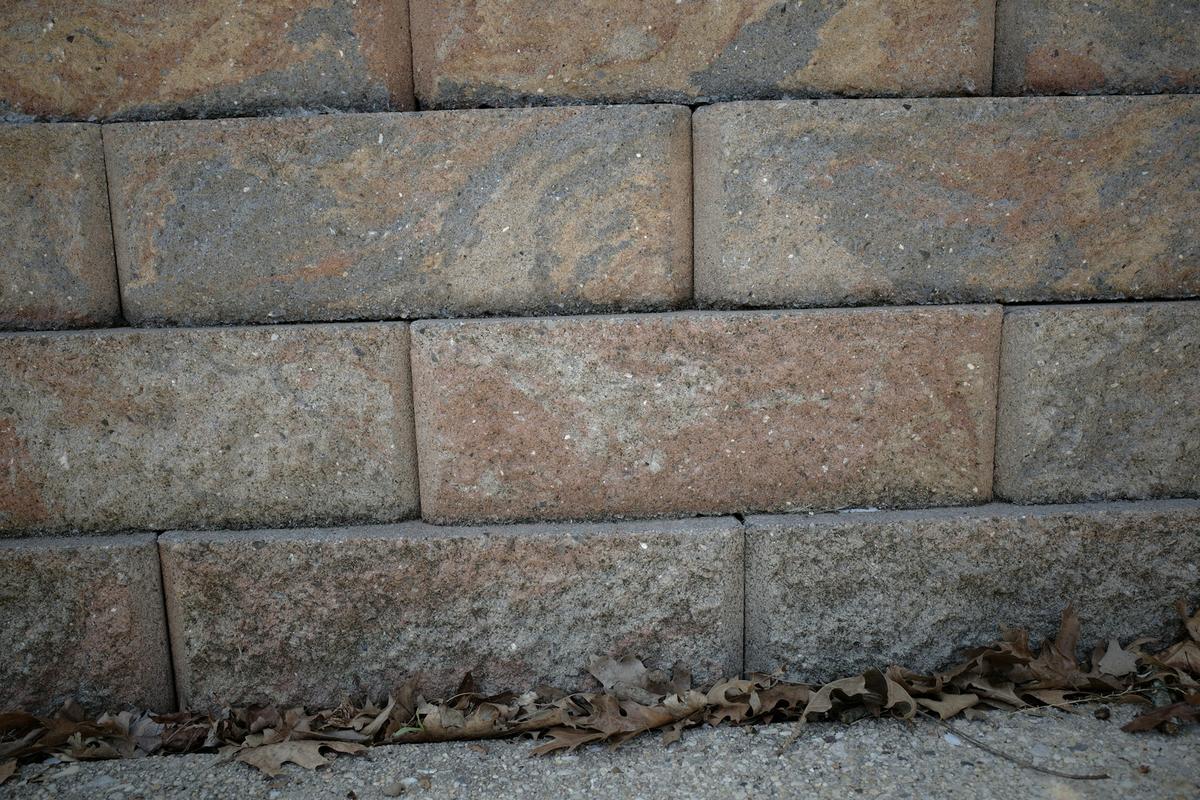

Segmental concrete block is the standard for most residential walls. Units interlock, the wall is built with a batter that leans slightly back into the slope, and geogrid layers tie the block mass into the soil behind it. Block walls go up fast, have known engineering values, and are the easiest to get stamped. They are the right choice for anything over 3 feet or anything carrying a surcharge.

Natural stone walls come in two kinds. Dry-laid fieldstone or wallstone is stacked with a batter and drainage behind it, and it works well up to about 3 feet where the look matters. Mortared or veneered stone over a block or poured concrete core gives the same look at any height, with the engineering coming from the core. Stone costs more in labor either way.

Pressure-treated timber is the lowest cost up front and the shortest lived. Timber walls rot at the soil line in 15 to 25 years in this climate, the deadmen that tie them back are the first to go, and the wall leans out as they fail. Timber is fine for a garden bed. It is a poor choice for anything holding up a driveway or a patio.

Why old walls fail

Most failed walls in this area were built without geogrid, without drainage stone, and without a compacted base. The wall stood for a few years on the strength of the block alone, then the soil behind it saturated and froze enough winters to push it out. The signs are a bulge in the middle third of the wall, block courses that have separated, and a top course that leans forward.

Base failure looks different. When the first course was set on topsoil instead of 6 inches of compacted stone, the wall settles unevenly and cracks or steps at the joints. The wall may still be plumb but the top line waves.

A leaning wall cannot be pushed back. The fix is to take it down, excavate behind it, rebuild the base, and rebuild the wall with grid and drainage. When the old wall is over 4 feet, the rebuild needs the same permit and engineering as a new wall. The hardscape page describes how walls are built here.

What the permit process looks like

For a wall that needs engineering, the sequence is usually: survey or site plan showing the wall location and setbacks, engineer's drawing with the wall section, geogrid lengths, and drainage, permit application to the town, then inspections at the base and at one or more points during construction. Some towns want an as-built letter from the engineer at the end.

Allow a few weeks for the drawing and the town review before the start date. We build walls within the 4 foot limit and without a surcharge, and we terrace larger grade changes where the lot allows it. When a wall has to be taller, it needs an engineer and a contractor who builds engineered walls, and we can still handle the grading, drainage, and planting around it.
